Air Release Value System – 15840-0
The Seta Air Release Value System is designed to determine the air release properties of hydrocarbon based oils in accordance with ASTM, IP and other methods.
The system comprises of a benchtop instrument with integrated density balance, heater, temperature control system, pressure regulation and microprocessor based control system.
A unique slider arrangement allows the user to easily position the test vessel throughout the test cycle.
Methods
ASTM D3427, IP 313, BS 2000-313, ISO 9120
Features
- Multi-station sample management platform
- Touch screen display and auto test commands
- Circulated heating
- Automated and integrated density monitoring
- Automatic result calculation
- Results storage for over 10,000 tests
- Full LIMS connectivity
- Quick connectors for ease of sample handling
- CE marked
- Automated calibration procedure
Details
Operator Safety
No need to handle hot sample vessel

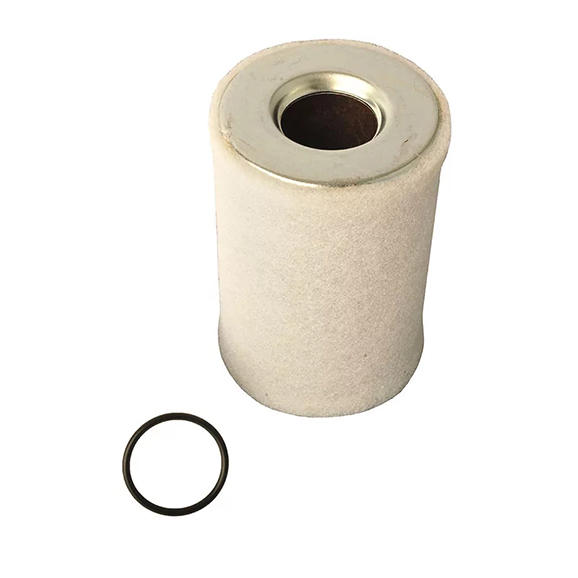

Exhaust filter system extracts noxious flames
Heating prevented when there is no air flow
Safety cut-out prevents overheating
Protective safety shield around vessel
Ease of Use:
Removes traditional operator problems

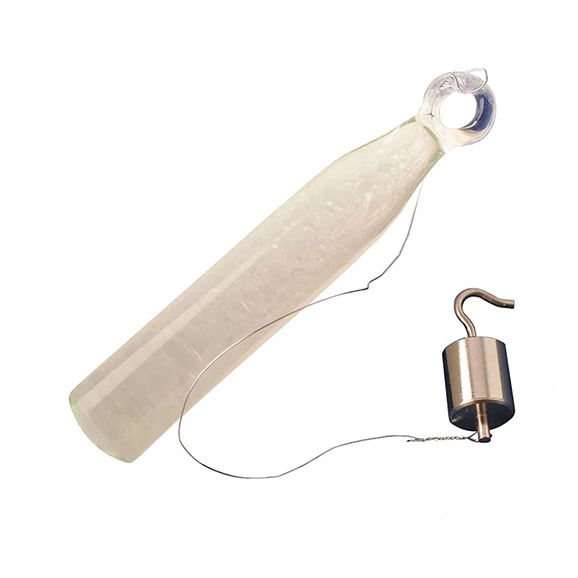

Sinker is permanently fixed to balance and sample raised up over it
A mechanical vessel platform allows you to move the sample quickly and precisely between test modes
Precision and Accuracy:
Automatic timing and regulated aeration ensures stable density and test repeatability
Enhanced Test Throughput:
Temperature control minimises sample heat loss and speeds up start of test
Automated test sequence optimises time take for each stage of test

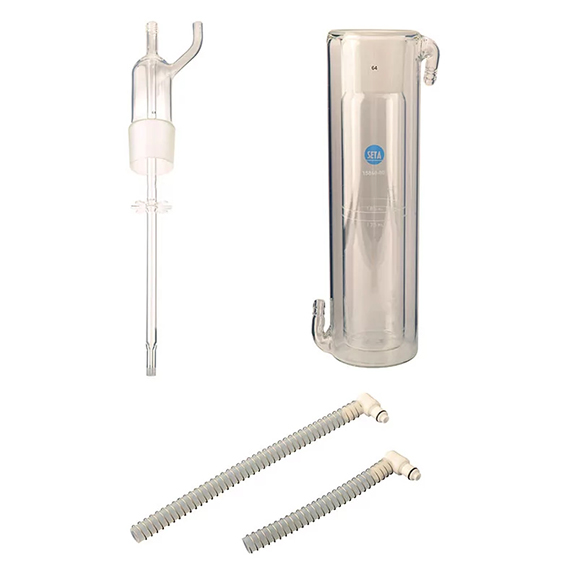

Quick connectors on glass vessels minimise assembly and cleaning time
Allows preheated samples to be tested in rapid succession
Specifications
| Compressed air supply pressure required | 137 kPa (let down to 20 kPa by the instrument) |
| Sample size | 180 ml ±5 ml |
| Temperature range | Ambient to 75 °C (air to 85 °C) |
| Set temperatures | 25 °C, 50 °C, 75 °C (custom temperature available in software) |
| Temperature stability | 0.2 °C |
| Density measurement accuracy | ±0.5 kg/m3 |
| Voltage | 110/240 V, 50/60 Hz, Autosensing Universal PSU |
| Current (MAX) | 3.5 A |
| Display | Widescreen 7″ TFT LCD 800 x 480 resolution |
| Size (HxWxD) | Weight |
| Weight | 29 kg |
