Clora Accu-flow – 403747-01FT
Precise determination of chlorine in petroleum is critical during refining processes. Chlorine may poison expensive catalysts and lead to corrosion in areas like the overhead or reactor effluent systems. Clora benchtop analyzers provide analysis of chlorine concentration in liquid hydrocarbon samples such as aromatics, distillates and heavy fuels, and aqueous solutions. All Clora benchtops are compliant with ASTM D7536 and ASTM D4929 standards, and use the same MWDXRF technology as our signature instrument – Sindie. This direct measurement technique does not require gasses or high temperature processes equating to easy operation and minimum maintenance requirements.
Methods
ASTM D7536, ASTM D4929
Features
Chlorine Analysis in Liquid Hydrocarbons and Aqueous Solutions
This model features Accu-flow to eliminate particle settlement during analysis. For best results, use standard XRF cups with static sample measurement, and Accucell cups with Accu-flow.
- Easy to use
- Extremely low maintenance
- Total chlorine analysis
- For use in multiple application areas
- Hassle-free sample prep
Details
Easy to use
LIMS integration for data management and transfer, intuitive 10-inch touch screen, measurement time 10-999 s, barcode reader auto fills sample name, USB connectivity, storage capacity for more than 50,000 results, supports up to 30 calibration curves
Extremely low maintenance
No gasses, columns, heating elements, or quartz tubing.
Total chlorine analysis
Petroleum products, biofuels, aromatics and other chemicals, and water.
For use in multiple application areas
Refineries, petrochemical and additive plants, pipeline terminals, and test laboratories.
Hassle-free sample preparation

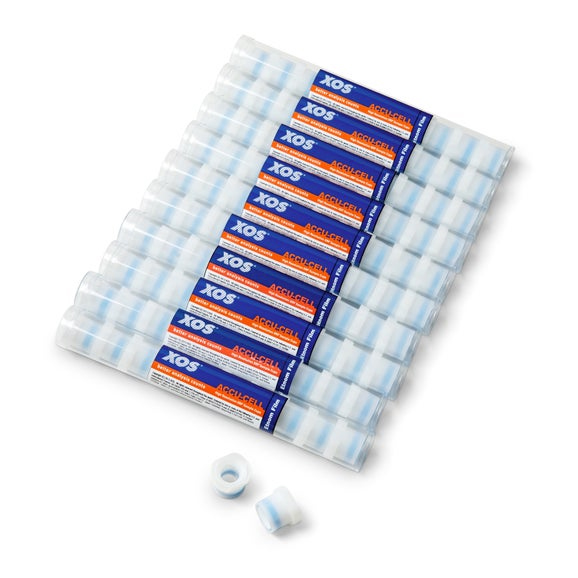

Utilizes Accucell pre-assembled and pre-vented sample cups for enhanced precision, extreme ease-of-use and enhanced productivity.
Specifications
| Accu-flow: | Yes |
| Auto Sampler: | No |
| Calibration curves: | Up to 30 calibration curves. Automatic and Manual Calibration functionality. |
| Catalysts: | Yes |
| Communication Capabilities: | USB, Ethernet: LIMS Connectivity and Printer (optional) |
| Consumable/Utility Gas: | Vacuum |
| Dimensions: Depth: | 21 in / 54 cm |
| Dimensions: Height: | 16.5 in / 42 cm |
| Dimensions: Width: | 15.8 in / 40 cm |
| Element: | Chlorine / 0.13 ppm |
| Measurement Time: | User selectable 30-900 s, 300-600 s typical |
| Methods: | ASTM D7536, ASTM D4929 |

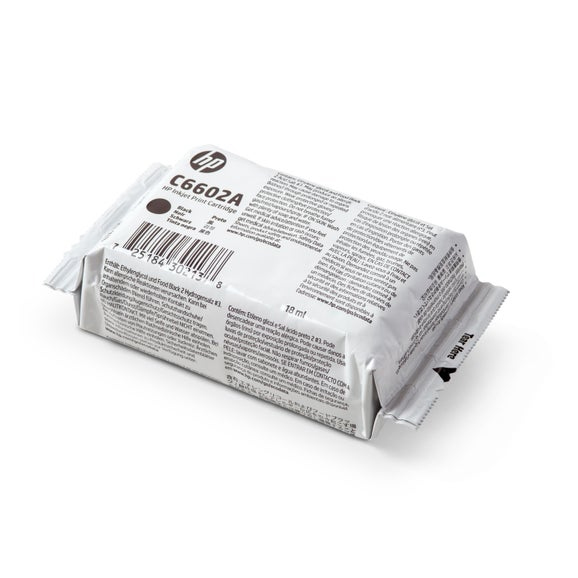

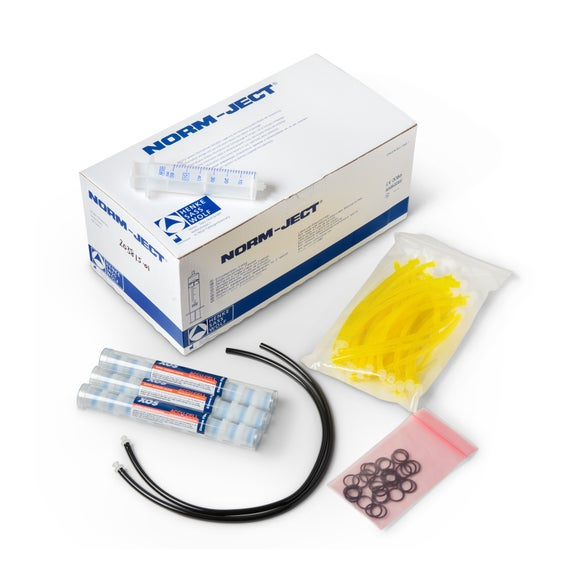

| Options: | USB Printer (Receipt or Full Page), Consumables, Calibration Standards and Spare Parts. |
| Range: | 0.13 ppm – 4% |
| Repeatability: | ppm – r Xylene 0.05 – 0.15 1 – 0.17 5 – 0.31 10 – 0.50 Crude Oil 5 – 0.4 10 – 0.8 50 – 1.2 Water 5 – 0.6 10 – 1.0 50 – 1.5 |
| Reproducibility: | ppm – R Xylene 0.05 – 0.27 1 – 0.29 5 – 0.53 10 – 0.90 Crude Oil 5 – 0.7 10 – 1.4 50 – 2.0 Water 5 – 1.0 10 – 1.5 50 – 2.5 |
| Sample Cup Type: | Standard XRF Cup |
| Sample Matrix: | Hydrocarbon |
| Specific Technology: | MWDXRF |
| Type: | Benchtop |
| Weight: | 75 lbs / 34 kg |
| What’s included?: | Quick-Start Guide, Operations Manual, radiation survey, power cord, 6′ drain tubing, spare fan filter, spare fuse, 100 sample cups, 100 etnom films, 30 etnom HV accucells, accucell inserts, 30 syringe, sample stand, spare primary window and 1 calibration set; 0-500 ppm Cl in Mineral Oil (6 x 10 mL). Printer optional. |
| XRF Film Type: | Etnom |
