Micro Carbon Residue Tester – 97400-3
The Micro Carbon Residue Tester is an automatic airtight furnace that is pre-programmed to run tests to determine Micro (Conradson) Carbon residue of petroleum products.
The digitally controlled furnace has a temperature range of ambient to 500 °C. Temperature, flow and pressure values are automatically controlled and values are displayed on the control panel. The test cycle includes an audible ‘end of test’ alarm.

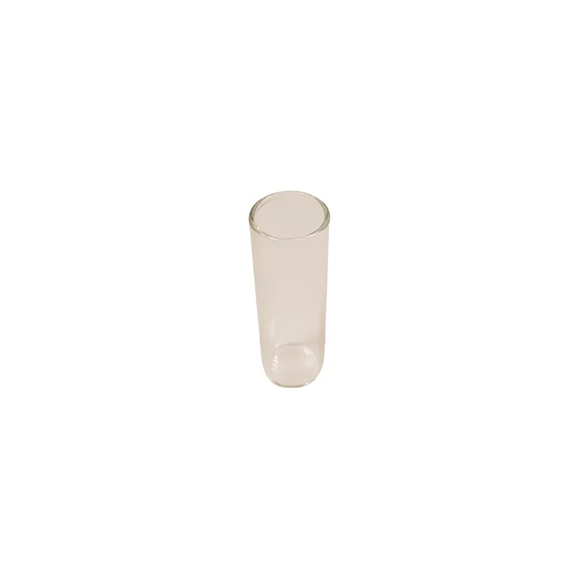

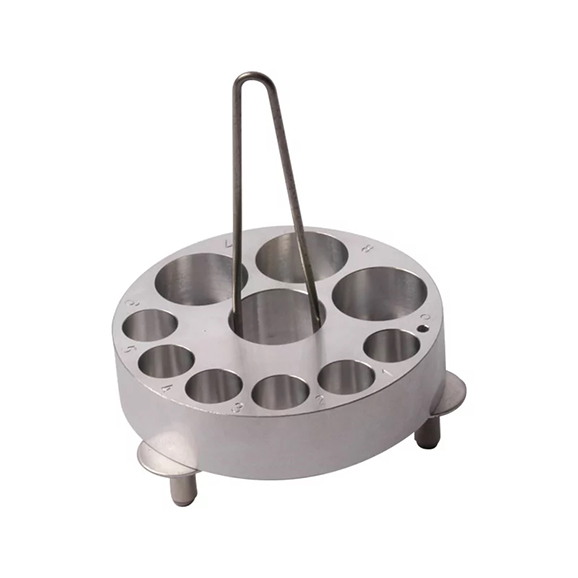

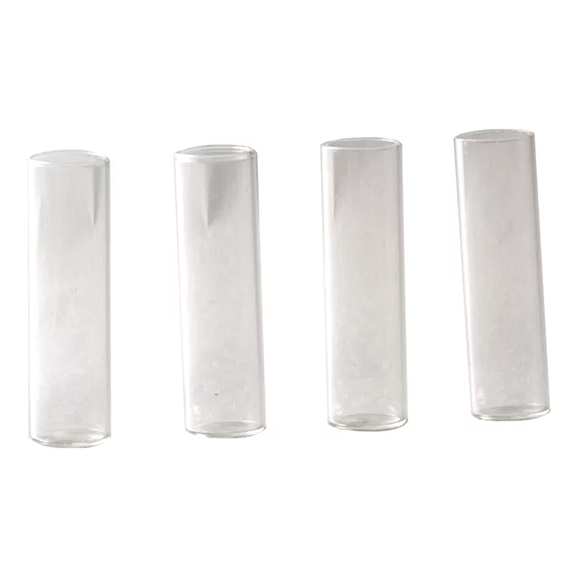

Includes: one six place holder for 16 ml sample tubes and one 12 place holder for 2 ml or 4 ml sample tubes (for sample tubes see Accessories).
Methods
ASTM D189, ASTM D4530, IP 13, IP 398, BS EN ISO 10370 & BS 2000-398, ISO 6615, ISO 10370
Features
- Carbon residue range 0.1% to 30.0% (m/m)
- 12 sample capacity
- Automatic temperature ramp and gas control
- Digital display flowmeter
- Equivalent to ASTM D189; IP 13
- Temperature range ambient to 500 °C
Details
The instrument has an integral condensate trap and exhaust outlet connection that allows fumes to be vented remotely if testing is not carried out under a fume hood. Low pressure and dual over-temperature cut-outs ensure safe operation. Fan assisted air cooling minimises time between tests.
Supplied with;
12 place holder
6 place holder
Removal tool
Condensate trap
Oven lid
Braided hose for nitrogen gas (3 m)
Rubber exhaust hose (5 m)
Mains lead
Instruction manual
Specifications
| Temperature Range | Ambient to 500 °C ±2 °C |
| Ramp Rate | 10 to 15 °C/minute |
| Thermocouple | Iron – constanton |
| Pressure Controller | 20 to 750 kPa |
| Primary Pressure | 1400 kPa max |
| Flowmeter | 0.1 to 1 litre/min |
| Flow Rate | Automatic, 150 ml/min or 600 ml/min |
| Consumption | Approx. 40l/N2 per test |
| Power | 1.6 kW |
| Voltage | 220/240 Vac, 50/60 Hz Or 220/240 Vac 60 Hz |
| Size (HxWxD) | 46 x 35 x 39 cm |
| Weight | 21 kg |
