Petra MAX – 403102-01
Petra MAX delivers D4294 sulfur analysis in addition to 12 elements from P to Zn, for rapid monitoring of critical elements like Ca, Fe, K, Ni, and V at sub-ppm levels. Powered by EDXRF, Petra MAX offers advanced precision and reliability. Petroleum laboratories depend on reliable, robust analytical solutions for their fast-paced environment. Petra MAX was designed to meet these needs with an innovative sample introduction system that directs accidental spills to a drip tray and away from valuable components.

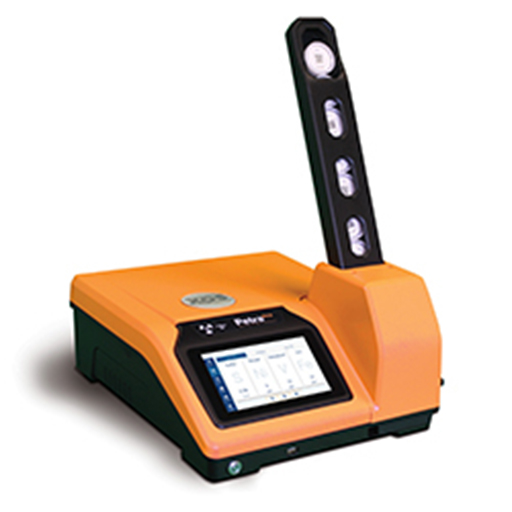

Petra MAX Autosampler offers a more efficient workflow with sample tracking and continuous sample loading. Users can eliminate data errors and add urgent samples to the queue as needed.
The Autosampler Upgrade Kit can be added to any Petra Series analyzer. Users have the option to use X-ID Sample Cups (QR-coded) or standard XRF cups.
Methods
ASTM D4294, ISO 8754, and IP 336
Features
Petra MAX complies with ASTM D4294, ISO 8754 and IP 336 methods for sulfur analysis of hydrocarbons like crude oil, diesel, gasoline, jet fuel, and lubricants.
Check out Petra MAX autosampler – delivering a more efficient workflow with sample tracking and continuous sample loading.
- Advanced Sulfur Analysis with EDXRF
- Advanced Precision
- Advanced Applications
- Advanced Software
- Advanced Data Management
Details
Advanced Sulfur Analysis with HDXRF
Enhanced detection performance over traditional XRF technology
Advanced Precision
Precise sulfur measurements with a LOD as low as 5.7 ppm and rapid monitoring of critical elements at sub-ppm levels
Advanced Applications
Hydrocarbons, water and catalysts
Advanced Software
Preset your measurement configurations
Advanced Data Management
Storage for thousands of measurements
Specifications
| Auto Sampler: | No |
| Calibration curves: | 30 calibration curves. Linear (automatic calibration available) |
| Catalysts: | Yes |
| Communication Capabilities: | Printer, USB & Ethernet, LIMS Integrated |
| Consumable/Utility Gas: | None |
| Dimensions: Depth: | 16.5 in / 41.9 cm |
| Dimensions: Height: | 6 in / 15.3 cm |
| Dimensions: Width: | 14.5 in / 36.8 cm |
| Element: | Sulfur / 5.7 ppm Phosphorus / 17 ppm Chlorine / 3 ppm Potassium / 0.7 ppm Calcium / 0.4 ppm Vanadium / 0.1 ppm Chromium / 0.09 ppm Manganese / 0.07 ppm Iron / 0.07 ppm Cobalt / 0.07 ppm Nickel / 0.04 ppm Copper / 0.1 ppm Zinc / 0.1 ppm |
| Measurement Time: | User selectable 30-900 s |
| Method Name: | ASTM D4294, ISO 8754, and IP 336 |
| Options: | Vibration Plate |
| Range: | Sulfur 5.7 ppm – 10 wt% |
| Sample Cup Type: | Standard XRF Sample Cups |
| Sample Matrix: | Hydrocarbon |
| Specific Technology: | EDXRF |
| Type: | Benchtop |
