Saccharomat® V – 16230

Details

As quartz has an optical rotatory dispersion (ORD) almost identical to that of a sucrose solution, SCHMIDT + HAENSCH developed a unique mechanism using a quartz wedge to compensate for small wavelength shifts. In other words, quartz and the sample react in an identical way to small shifts of wavelength, and these shifts are automatically compensated and the effect becomes irrelevant. This ensures long time stable high precision measuring results without the necessity of recalibration over the lifetime of the instrument. The Saccharomat V uses an energy saving LED, keeping the maintenance efforts minimal. The functionality of the device can be monitored using triple quartz control plates.

Easy to use

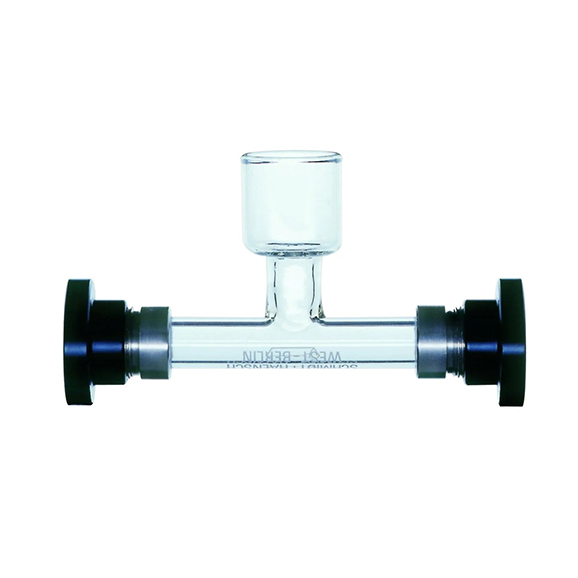

With the use of corresponding polarimeter tube and its self-sealing coupling for quick and safe connection to water circulators, an automatic temperature compensation is made possible. The Polartronic V allows even for dark samples with a high absorption to be measured at NIR wavelength (882.6 nm) after filtration with the AutoFilt Z unit. Additional clarification is not necessary. Paired with ATR P, Pol and Brix values can be measured simultaneously – see SCHMIDT + HAENSCH Purity Analyzer. The continuous measurement can be performed under user-specific methods selected over the intuitive operation system displayed by a high resolution 7” TFT touch screen that can be individually adapted. Up to 1000 scales are easily programmable.

Applications
The Saccharomat V is most often used within the sugar industry and sugar harvest, making it relevant for agriculture. Sugar purity and dark molasses can be reliably analyzed.
