Seta Cloud and Pour Point Cryostat – 93531-8
The Seta Cloud and Pour Point Cryostat has four 2 litre compartments which are independently temperature controlled and can accommodate four Air Wells. Three compartments have a temperature range of ambient to -34 °C and one has a low temperature compartment -34 to -51 °C. The lid is electrically heated to prevent the formation of ice and condensation. Refrigeration is accomplished by a two stage CFC free system.
Methods
ASTM D97, ASTM D2500, ASTM D5853, IP 15, IP 219, IP 441, BS 2000-15 & ISO 3016, BS EN 23015 & BS 2000-219 & ISO 3015, DIN EN 23015, DIN ISO 3016
Features
- Four individually temperature controlled compartments
- Four air wells in each compartment
- CFC free refrigeration system
- Heated anti-condensation lid
- Non flammable refrigerants, compliant with F-Gas Regulation
Details

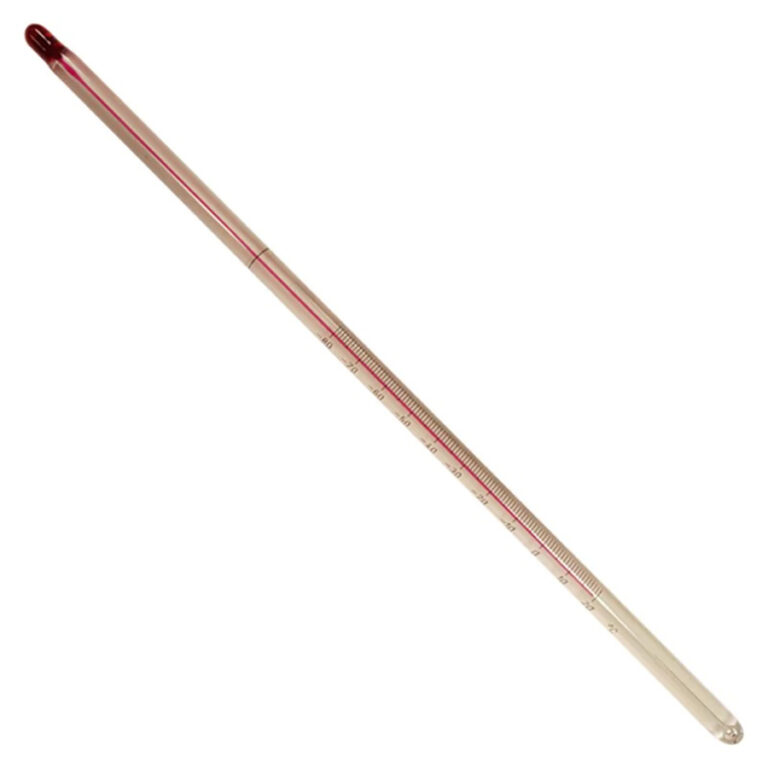

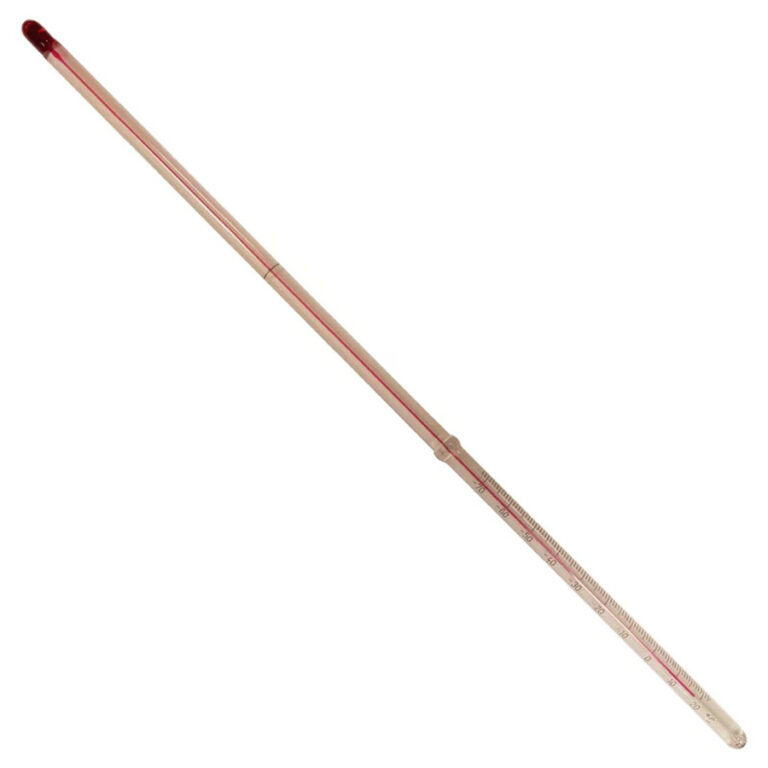

Supplied with; 16 test jars (each comprising graduated glassware, thermometer cork, insulating gasket and disc), a compartment thermometer and instruction manual.
Note: Due to the low operating temperature of this bath, it is recommended that the compartments are filled with Butyl Glycol
Specifications
| Compartment quantity | 3 + 1 low temperature |
| Compartment volume | 2 litre |
| Total test positions | 16 |
| Temperature range | Ambient to -34 °C (x3) -34 °C to -51 °C (x1) |
| Ambient temperature range | 15 °C to 32 °C |
| Cool down Time (single compartment) | Approx 2 hours 30 minutes at an ambient of 23 °C (to -51 °C) |
| Refrigerant | CFC free, first stage R134a, second stage R452a |
| Voltage | 110/120 V, 60 Hz 220/240 V, 50 Hz |
| Power | 1.8 kW |
| Size (HxWxD) | 95 x 63 x 63 cm |
| Weight | 115 kg |
