Seta Oxi-Cor Bath – 15550-3
The Seta Oxi-Cor bath is a stainless steel water or oil bath. Temperature controlled by a top mounted thermostir circulator with integral over-temperature and low fluid level protection devices.
The bath has four test stations. Each has a lid with a hook, from which you suspend either a Corrosion Pressure Vessel (11500-0) or a test tube Support Assembly (11420-0), holding up to three Test Tubes (11590-0). You can use any combination of these.
NOTE: For oxidation tests, methods specify a certain bath volume per pressure vessel. In order to comply with this, you can only use two oxidation pressure vessels in the bath at the same time.
Methods
ASTM D130, ASTM D525, ASTM D873, ASTM D4048, ASTM D4814, ASTM D5304, ASTM D7667, ASTM D7671, IP 40, IP 154, IP 227 (obs), IP 611BS 2000-112 & IP 112, BS 2000-138 & IP 138, BS EN ISO 2160 & BS 2000-154 & ISO 2160, BS EN ISO 7536 & BS 2000-40 & ISO 7536, DIN EN ISO 2160, DIN EN ISO 7536
Details
You can replace one or more of the four lids with an Oxidation Vessel (15802-2). Pressure in the vessel can be monitored automatically with the Seta Auto-Oxi Control System (15452-2).
A Silver Corrosion Conversion Kit (11510-0) is available to convert test stations to hold Glassware – Silver Corrosion (11430-0).
Supplied with; 4 lids, mains lead and instruction manual.
Specifications
| Temperature Range | Ambient +5 °C to 150 °C |
| Temperature Stability | ±0.1 °C |
| Bath Capacity | 34 litres |
| Voltage | 110/120 V, 50/60 Hz 220/240 V, 50/60 Hz |
| Heater Power | 1500 W |
| Size (HxWxD) | 52 cm × 48.5 cm × 33 cm |
| Weight | 10 kg |

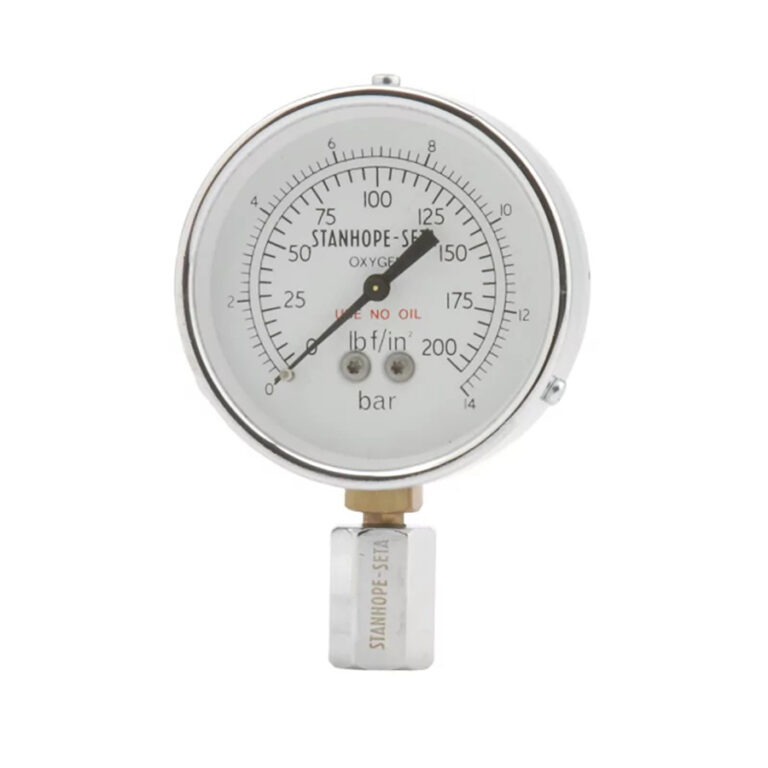

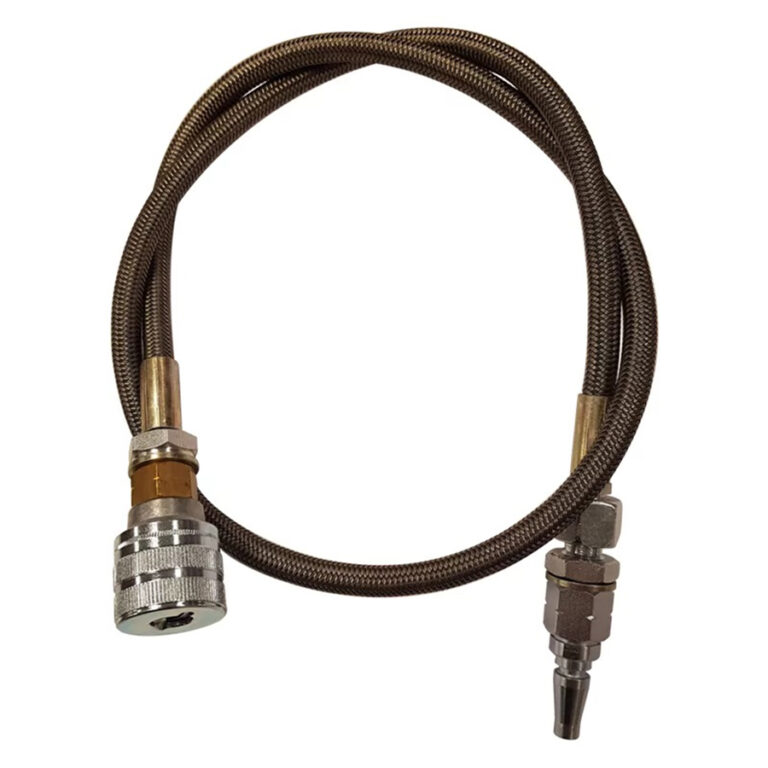

Spares and Accessories
