Seta Pensky-Martens Closed Cup Flash Point Tester – 13661-4
A tester with an electrically heated cup, adjustable temperature ramp rate, and two speed stirrer (for ASTM D93 – IP 34 Methods A & B).
Methods
ASTM D93, ASTM D8175, IP 34, BS EN ISO 2719 & BS 2000-34
Features
- Ambient to 370°C temperature range
- Variable ramp rate
- Two speed stirrer
- Forced air cooling facility
- Procedures A and B
- Integral two speed stirrer
- Accelerated cooling
- Open cup test conversion
Details

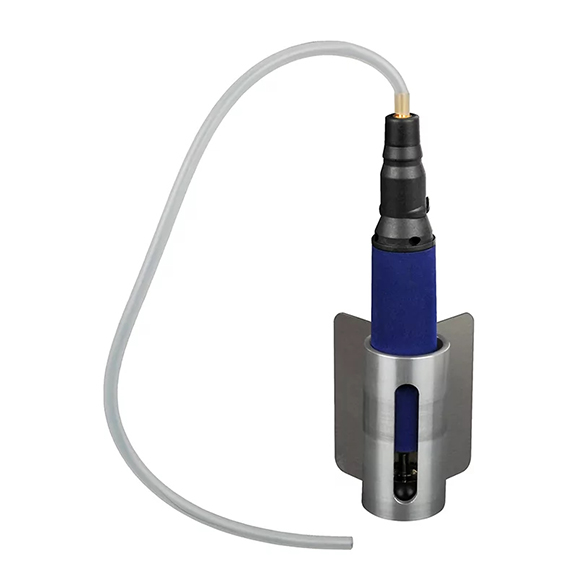

Suitable for use with mains gas or Portable Gas Tank (13667-0). A compressed air supply can be attached to the rear of the instrument to allow rapid cooling in between tests.
Supplied with;

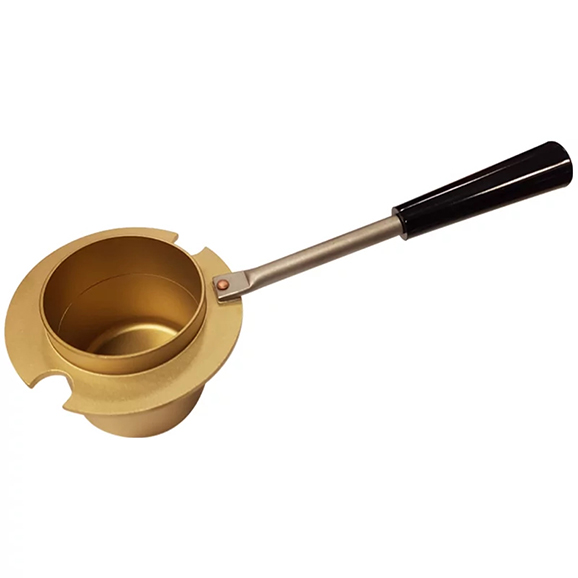

Sample cup
Lid and shutter stand
Instruction manual
Specifications
| Stirrer | Two speed, for ASTM D93-IP34, Methods A and B |
| Temperature range | Ambient to 370°C |
| Ramp rate | Variable, manually controlled |
| Power | 430 W |
| Voltage | 110/120 V, 60 Hz 220/240 V, 50 Hz 100/130 Volt 60Hz 220/240V, 60Hz |
| Size (H x W x D) | 28 cm x 35 cm x 25 cm |
| Weight | 8 kg |
Spares and Accessories
