Signal R – 403921-01

Method

ASTM D7757

Features

Silicon Analysis in Petroleum and Bio Fuels

Signal complies with ASTM D7757 and delivers quantitative analysis of silicon (Si) from gasoline to ethanol, and toluene. Silicon contamination continues to impact fuel quality, resulting in costly engine failures and catalyst fouling. Powered by MWDXRF, Signal provides exceptional Si analysis and is an ideal solution for demanding petroleum and industrial environments.

Easy to use
Extremely low maintenance
Total silicon analysis
For use in multiple application areas
Hassle-free sample prep

Details

Easy to use
User-friendly with touch screen interface. Just plug-it-in and measure, results with one touch: power is only utility.

Extremely low maintenance
No conversion gasses, heating elements, quartz tubes or columns.

Total phosphorus analysis
Total silicon analysis in hydrocarbons and biofuels.

For use in multiple application areas
For use in refinery labs, pipeline terminals, additive plants, and inspection laboratories.

Hassle-free sample preparation
Utilizes standard XRF sample cups.

Specifications

Calibration curves:	Up to 30 calibration curves. Automatic and Manual Calibration functionality
Catalysts:	No
Communication Capabilities:	Ethernet, USB, LIMS Connectivity. Printer Optional (US/CA Only).
Concentration:	In ppm: 2, 5, 8, 15, 100, 500
Consumable/Utility Gas:	Vacuum
Dimensions: Depth:	21 in / 54 cm
Dimensions: Height:	16.5 in / 42 cm
Dimensions: Width:	18.8 in / 40 cm
Element:	Silicon / 0.65 ppm at 600 s
Measurement Time:	User selectable 30-900 s, 600 s typical
Method Name:	ASTM D7757
Options:	Printer (US/CA only)
Range:	0.65 ppm – 3000 ppm
Repeatability:	ppm – r 2 – 0.4 5 – 0.5 8 – 0.6 15 – 0.8 100 – 2 500 – 5
Reproducibility:	ppm – R 2 – 0.7 5 – 0.8 8 – 1.0 15 – 1.4 100 – 4 500 – 10
Sample Cup Type:	Standard XRF Cup)
Sample Matrix:	Hydrocarbon
Specific Technology:	MWDXRF
Type:	Benchtop
Weight:	75 lbs / 34 kg

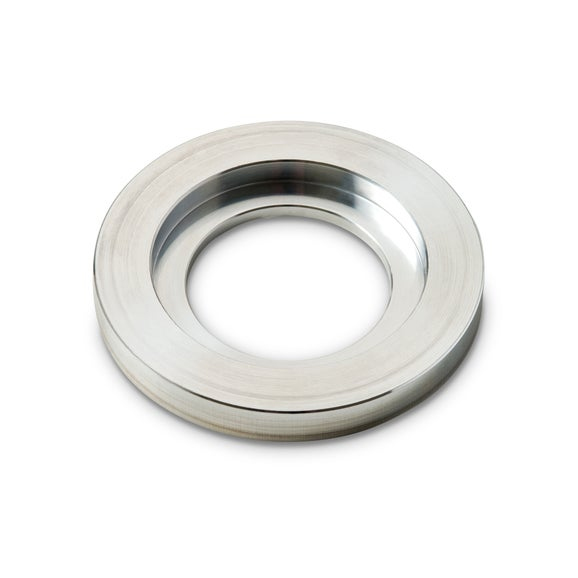

What’s included?:	Quick-start guide, operations manual, radiation survey, 6′ drain tubing, spare fan filter, spare fuse, window, window tool, 100 sample cups, 100 prolene films, sample stand, 1 set calibration standards (6 x 10 mL).
XRF Film Type:	Prolene
